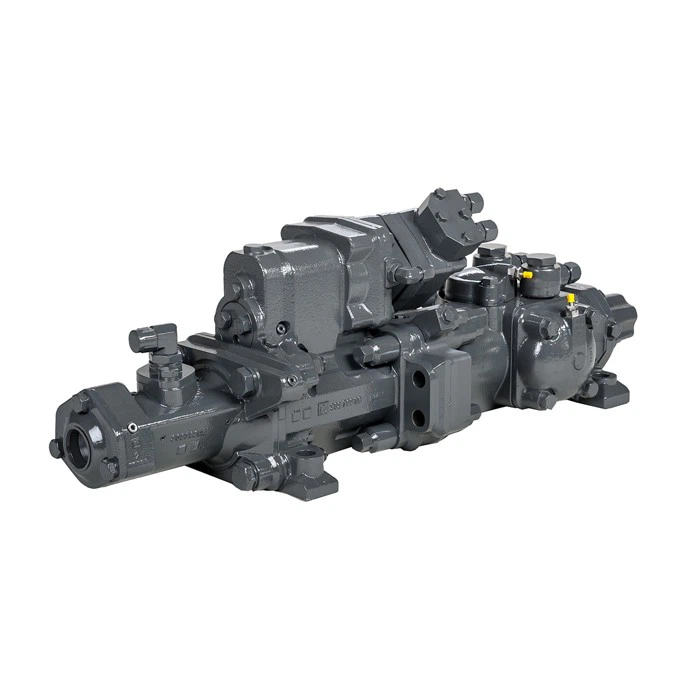

SANDVIK ROCK DRILL RDX5

Sandvik Pob Zeb Laum Rdx5

Sandvik Sab saum toj Rauj Pob Zeb Laum
Qauv: 820T
Qhov loj me: 64 - 127 mm
Lub cev muaj zog: 21 kW
Percussion tus nqi: 53 Hz

Xa kev nug

Khoom Taw qhia

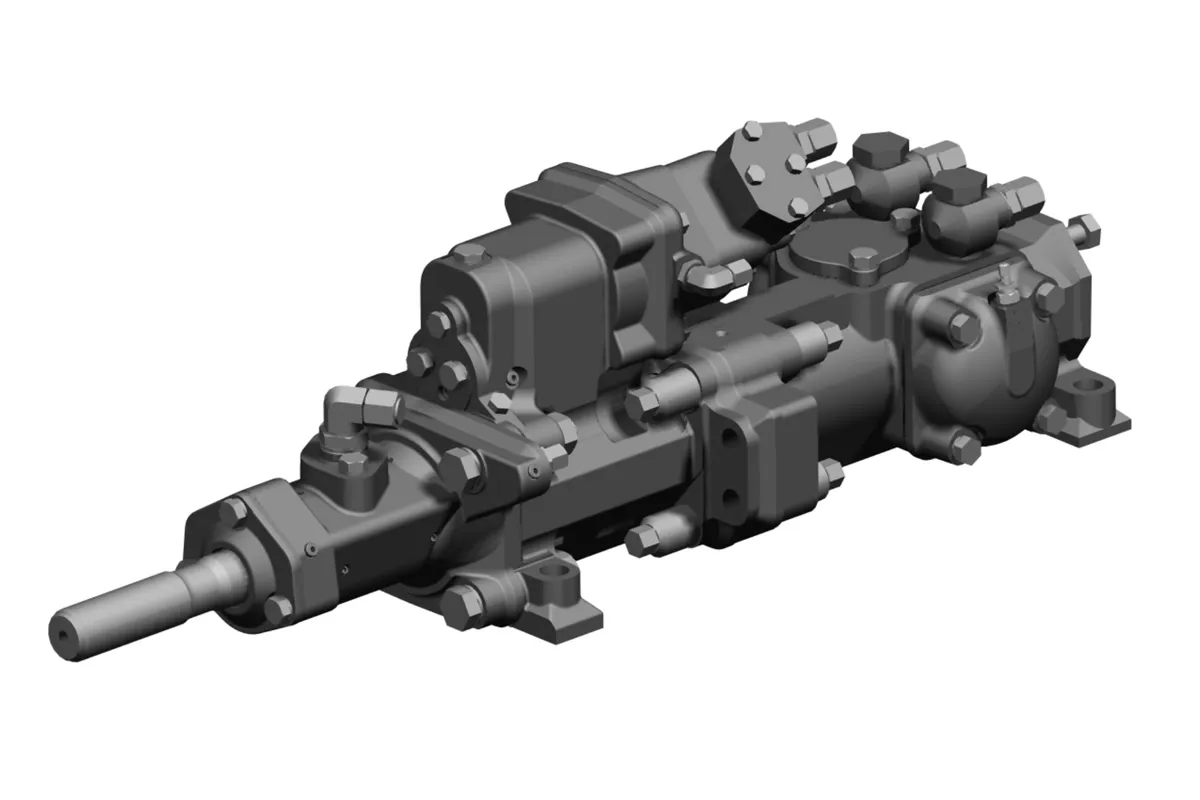

Product Overview

Qauv TSIS MUAJ: HF820T

Hom Lub Npe: SANDVIK

Khoom npe: SANDVIK Sab saum toj-rauj Pob Zeb Laum

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: Standard

Kev thauj mus los: Dej hiav txwv, av

Qhov chaw ntawm Keeb Kwm: Tuam Tshoj Chaw nres nkoj: FOB QINGDAO

Kev Them Nyiaj: L / C, T / T

SANDVIK ROCK DRILL RDX5, nrog kev sib hloov ywj pheej thiab sib cais sib cais, yog sib xws nrog Sandvik nto thiab hauv av ntev qhov laum rigs thiab tuaj yeem laum 64-127 hli inch qhov.

SANDVIK ROCK DRILL RDX5 muaj kev pabcuam zoo heev los ntawm kev tsim kho thiab kev pom kev pom. Nws kuj muaj kev sib xyaw ua ke kom yooj yim rau kev pabcuam.

Shank lubrication ntws yog coj mus rau qhov chaw pub khoom kom txo tau cov pa roj carbon monoxide, tsim kom muaj chaw ua haujlwm zoo dua.

Khoom parameters

TSEEM CEEB

Txoj kab uas hla drilling	64 - 115 hli
Hwj chim chav kawm	19.5 kW tsi
Percussion tus nqi	42 - 52 Hz
Kev khiav hauj lwm siab
Percussion Rotation (max.)	100 - 190 bar, 200 bar
Rotation motor hom	OMT 200, OMT 250 lossis OMT 315
Laum hlau	38 hli / 45mm / 51mm
Shanks
38mm cev	T38/600
45mm cov	T45/600
51mm cev	T51/600
Qhov hnyav	245kg ua

ROTATION MECHANISM
Lub cev muaj zog	Hom kab
Lub cev muaj zog 1	AWM 200
Torque (ntawm 175 bar)	1 095nm
Kev sib hloov ceev	0 - 180 rpm
Flow (ntawm max ceev)	79 l / min
ROTATION MECHANISM
Lub cev muaj zog	Hom kab
Lub cev muaj zog 2	TIAB SA 250
Torque (ntawm 175 bar)	1 335nm
Kev sib hloov ceev	0 - 180 rpm
Flow (ntawm max ceev)	99 l / min
FLUSHING TSHUAB
Max. siab (cua / dej)	20 bar
ACCUMULATORS
Accumulator roj	Nitrogen N2
Siab siab (HP)	50 bar
Tsis tshua muaj siab (LP)	4bar ua
Filling valve	Vg8 DIN7756
SHANK LUBRICATION
Cua ntws	200 - 300 l/min
Siab	4 - 7 bar
Roj noj	250 - 550 g/h
COV TSWV YIM
Roj ua haujlwm kub	+40 degree mus rau +60 degree
Roj pom zoo	Saib Sandvik laum rigs lubricant pom zoo rau cov ncauj lus kom ntxaws.

NTAUB NTAWV

Robust, txhim khu kev qha pob zeb xyaum
Sandvik HF820T muaj kev ntseeg siab thiab muaj peev xwm drilling siab, ua tiav los ntawm nws cov qauv ua haujlwm.

Lub zog rho tawm (xaiv)
Xyuas kom tsis muaj teeb meem tsis muaj qhov drilling txawm nyob rau hauv qhov hnyav tshaj plaws los ntawm kev siv lub tshuab hluav taws xob xaiv tau ntxiv rau kev ntseeg siab thiab kev ua haujlwm.
